POS
POS655

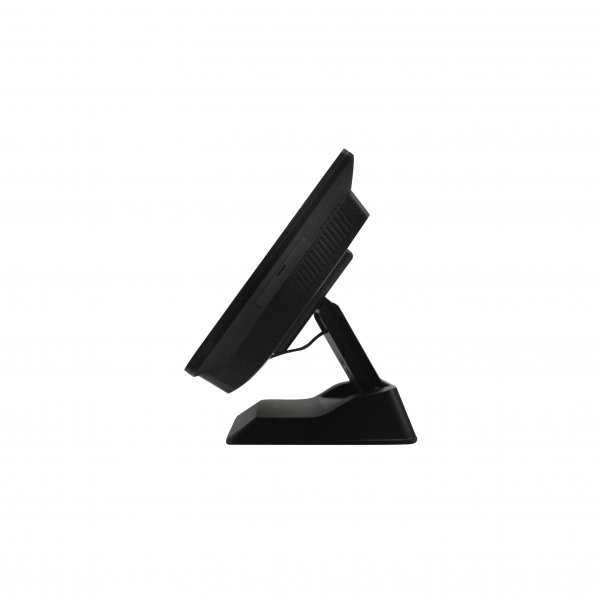

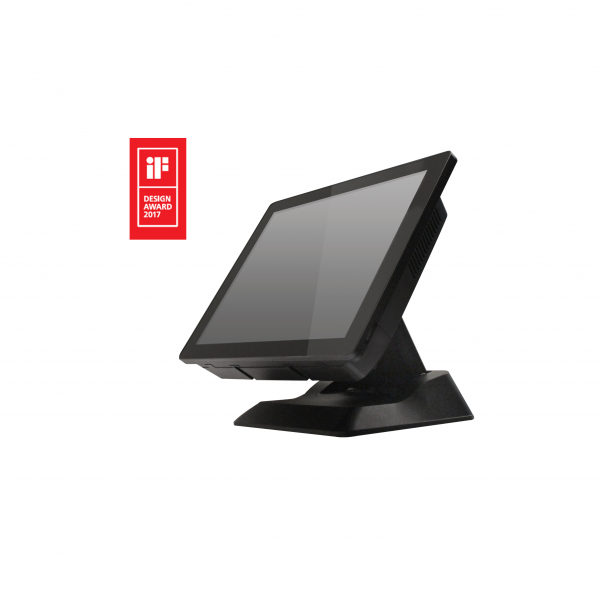

The new POS 655 is a modular 15” Point-of-Sale Terminal. From the Motherboard,
Hard-drive, Power Adapter to optional Peripheral modules, the POS 655 was born to make life easier when it comes to serviceability and upgradability.The sleek, ergonomic design allows this POS terminal to be a perfect fit for the retail and hospitality industry. Aside of its modular design, another key feature is the optional System Diagnostic Recorder (SDR). The SDR
device allows the End-User to easily monitor key hardware status via a Smartphone App. The POS 655 offers seamless integration of key parts with a variety of peripheral modules such as MSR, iButton, Fingerprint, Second Display and Customer Display.
  •  15” True-Flat PCAP Touch
  •  Intel Skylake S Processor
  •  System Diagnostic Recorder (SDR) Available
  •  3-Track MSR Available
  •  iButton and Fingerprint Available
  •  2nd Display and Customer Display Availablee
15” True-Flat PCAP Touch
Easy Assembling Wi-Fi Card

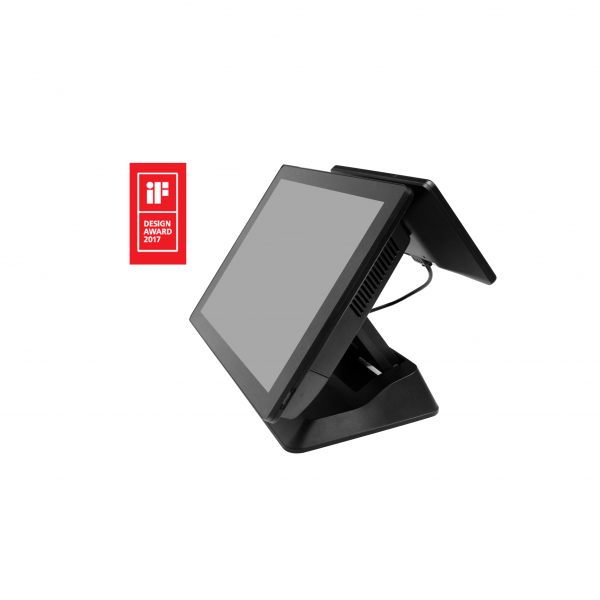

15" 2nd Display Supported
Support System Diagnostic Recorder (SDR)

Modular
 design
Display
(Easy Remove the Display without Screw)
Peripheral (without Cable)
Easy Swap Optional I/O Board
Antenna
Motherboard
VFD/ 8.4" 2nd Display
Model POS655
Motherboard D85S
Processor i3-6100TE 2.7G, L3 4M, 35W
Pentium-G4400TE 2.4G, L3 3M, 35W
Celeron G3900TE 2.3G, L3 2M, 35W
Chipset Intel Q170
System Memory 2x DDR3L SO-DIMM up to 16GB
Graphic Engine Intel HD graphic DX12, define on CPU
LCD Touch Panel
LCD Size 15” LED Panel
Brightness 350 nits
Resolution 1024 x 768
Touch Screen True-Flat PCAP Touch
Storage Device
Hard Drive 2x 2.5” HDD
Flash Memory 2.5" SSD / pSSD flash bay (Option)
External I/O Ports
USB 4x USB3.0/2.0, 2x USB2.0
Serial Port 3x RJ48 (powered RS232) (default 0V; 0V/5V/12V)
LAN 1x RJ45
VGA 1x DB15
Display Port 1
Audio Line-out 1
Optional I/O Board
Module 1 2x USB2.0, 1x RJ45 (2nd LAN)
Module 2 1x Power USB 24V, 1x Power USB 12V, 1x Cash Drawer Port
Module 3 1x 24V Power Output, 1x Power USB 12V, 1x Cash Drawer Port
Power
Power Adapter 120W / 19V w/ lock plug or 180W / 19V w/ lock plug (w / power USB I/O Module 2 or Module 3)
Peripheral (Option)
MSR 3-Track MSR
iButton iButton (USB)
Fingerprint Fingerprint Reader (USB)
2nd Display 8.4" without touch
Customer Display LCM display 2 x 20 characters (USB) or VFD display 2 x 20 characters (COM)
Certificate
EMC & Safety FCC Class A, CE Mark, LVD
Environment
ESD 4kV contact discharge, 8kV air discharge
Operating Temperature 5°C ~ 35°C (41°F ~ 95°F)
Storage Temperature -20°C ~ 55°C (-4°F ~ 131°F)
Humidity 20% ~ 80% RH non-condensing
Dimension (WxDxH) 360 x 212 x 375 mm (14.2" x 8.3" x 14.8")
Weight 6.2 kg (13.7 lbs)
OS Supported Windows 7 (64bit), POSReady 7 (64bit), Windows 8.1 (64bit),
Windows Embedded 8.1 Industry (64bit), Windows 10 (64bit),
Windows 10 IoT Enterprise (64bit), Linux
